Home > Products > Wire Mesh Series > PVC Coated Welded Wire Mesh

Products List

Wire Mesh Series

< >

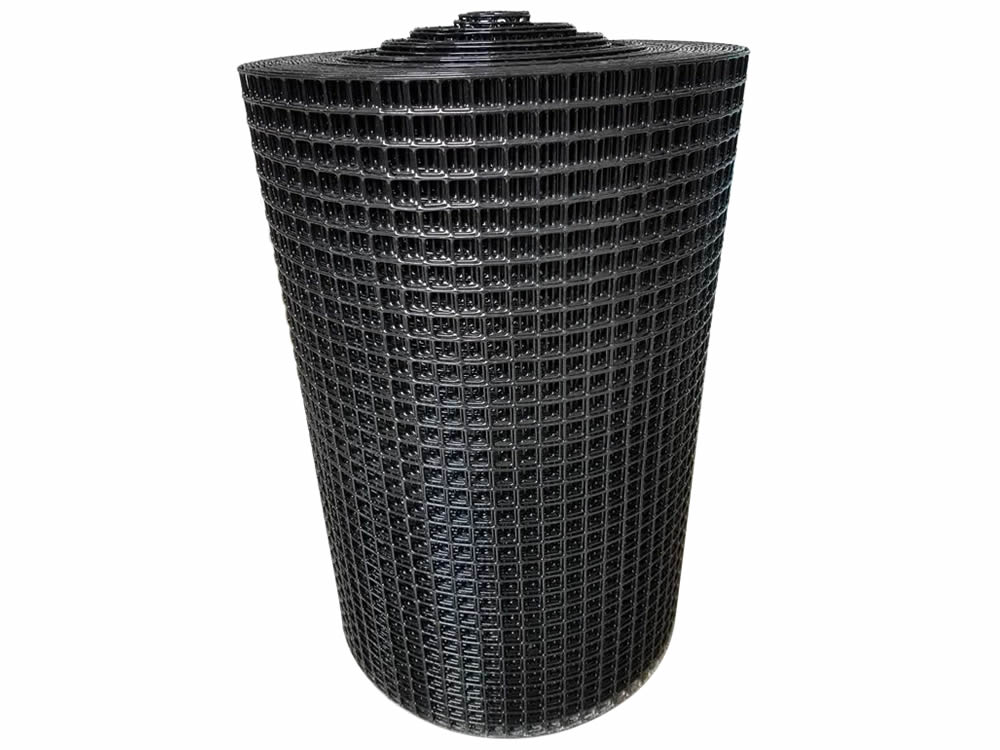

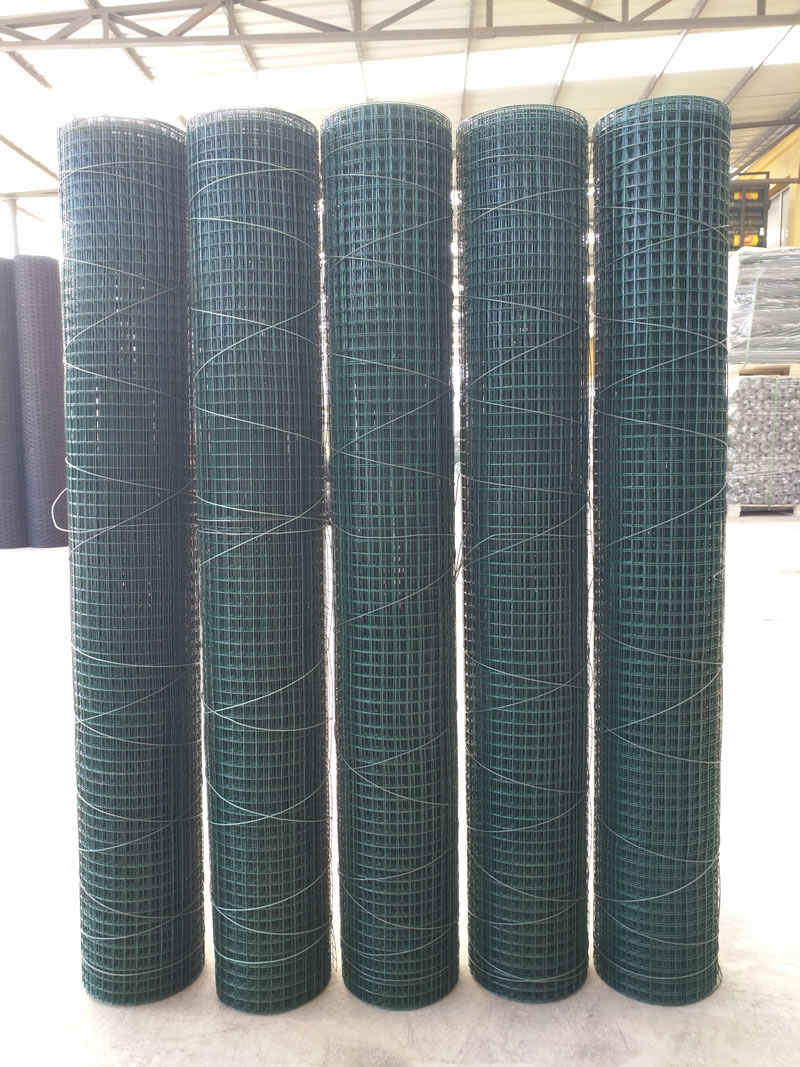

PVC Coated Welded Wire Mesh

Materials: Quality mild steel wire + PVC Powder
Process: First welded by high quality iron wire then PVC coating
Feature: Smooth and uniform mesh edge, Uniform bright galvanizing


Assortments:

* Inner black iron wire, outer PVC coating
* Inner Electro galvanized wire, outer PVC coating
* Inner Hot dipped galvanized wire, outer PVC coating
* Inner Galvanized after weaving, outer PVC coating

Features:

* Welded by high quality iron wire.
* Eco-Friendly PVC Powder
* Adaptable for all fencing needs and DIY.
* Remains perfectly straight and flat.
* Smooth and uniform mesh edge.
* Welded cross wires for added strength.
* Uniform bright galvanizing.
* Extreme corrosion resistant.
* Easy to handle and carry.
* Easy to install.

Applications:

* Tree, lawn and garden fencing.* Decorative fencing.* Window and screen door guards.* Basement and garage and enclosures.* Animal cages and enclosures.* Dividing side lines and backyard enclosures.* Display shelves.* Storage bins.* Concrete reinforcement.

PVC Coated Welded Wire Mesh
Mesh Opening Wire Thickness Width
inch mm mm inch m
1/4 X 1/4 6 X 6 0.35/0.7—0.5/0.9 12-48 0.3-1.2
3/8 X 3/8 10 X 10 0.35/0.7—0.8/1.2 12-48 0.3-1.2
1/2 X 1/2 13 X 13 0.4/0.8—1.2/1.6 12-80 0.3-2.0
5/8 X 5/8 16 X 16 0.4/0.8—1.2/1.6 12-48 0.3-1.2
3/4 X 3/4 19 X 19 0.4/0.8—1.2/1.6 12-80 0.3-2.0
1/2 X 1 13 X 25 0.4/0.8—1.2/1.6 12-80 0.3-2.0
1 X 1 25 X 25 0.5/0.9—1.6/2.0 12-80 0.3-2.0
1-1/4 X 1-1/4 30 X 30 0.5/0.9—1.6/2.0 12-80 0.3-2.0
1-1/2 X 1-1/2 40 X 40 0.5/0.9—1.6/2.0 12-80 0.3-2.0
1 X 2 25 X 50 0.6/1.0—2.2/2.6 12-80 0.3-2.0
2 X 2 50 X 50 0.6/1.0—2.2/2.6 12-80 0.3-2.0
2 X 3 50 X 75 1.6/2.0-2.2/2.6 12-80 0.3-2.0
2 X 4 50 X 100 1.6/2.0-2.2/2.6 12-80 0.3-2.0
3 X 3 75 X 75 1.6/2.0-2.2/2.6 12-80 0.3-2.0
3 X 4 75 X 100 1.6/2.0-2.2/2.6 12-80 0.3-2.0
4 X 4 100 X 100 1.6/2.0-2.2/2.6 12-80 0.3-2.0
