Wire Mesh Series

< >

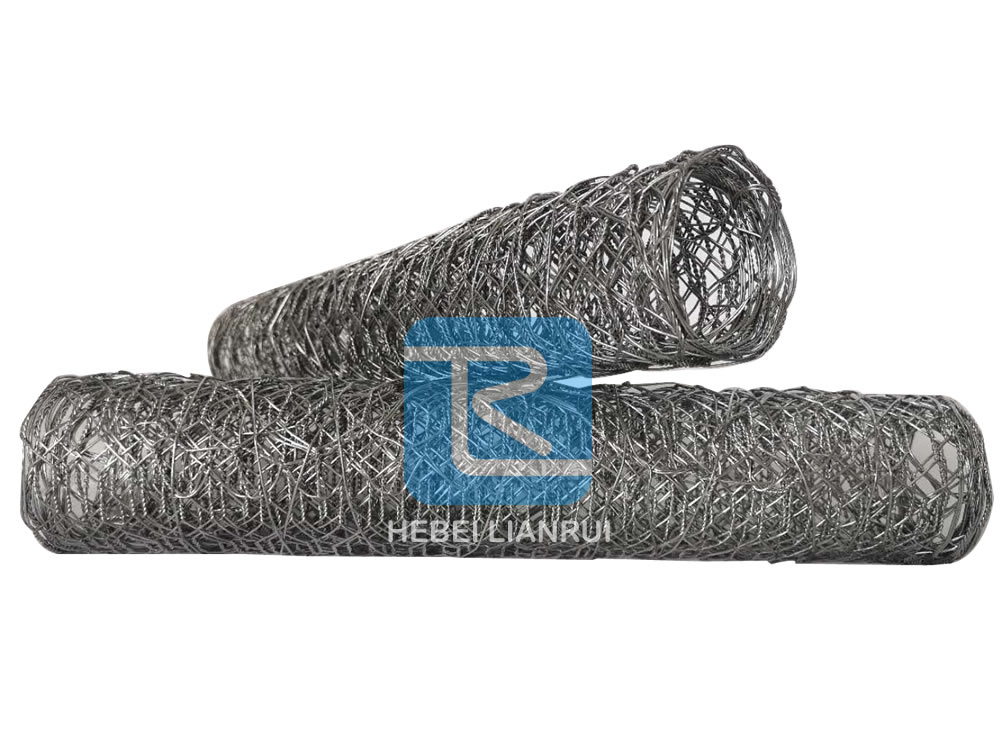

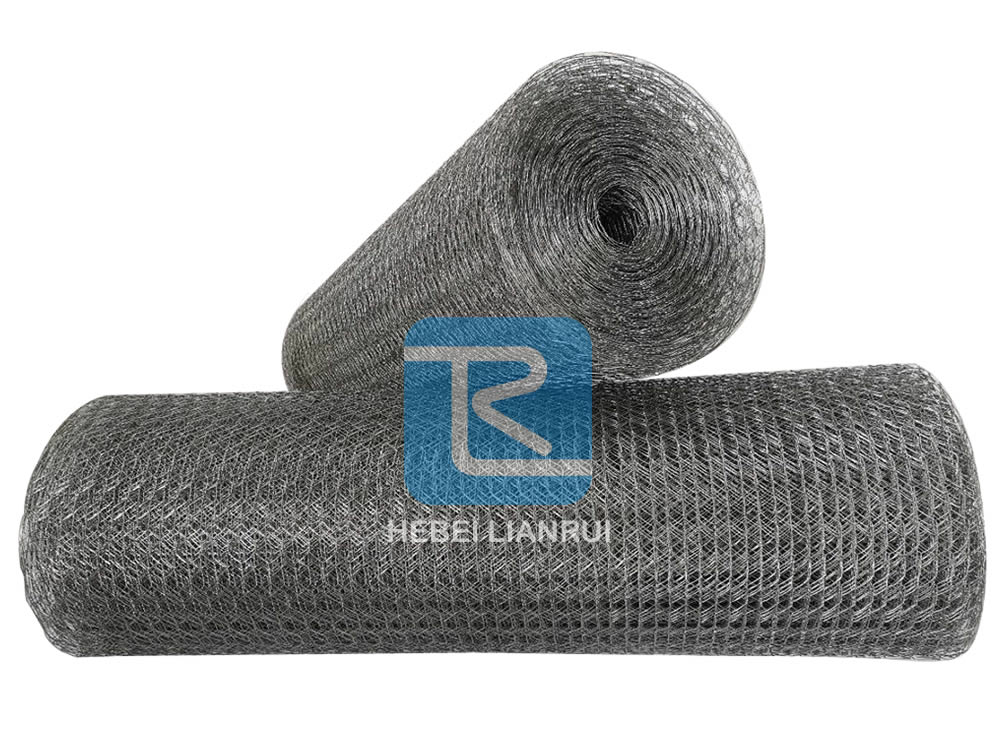

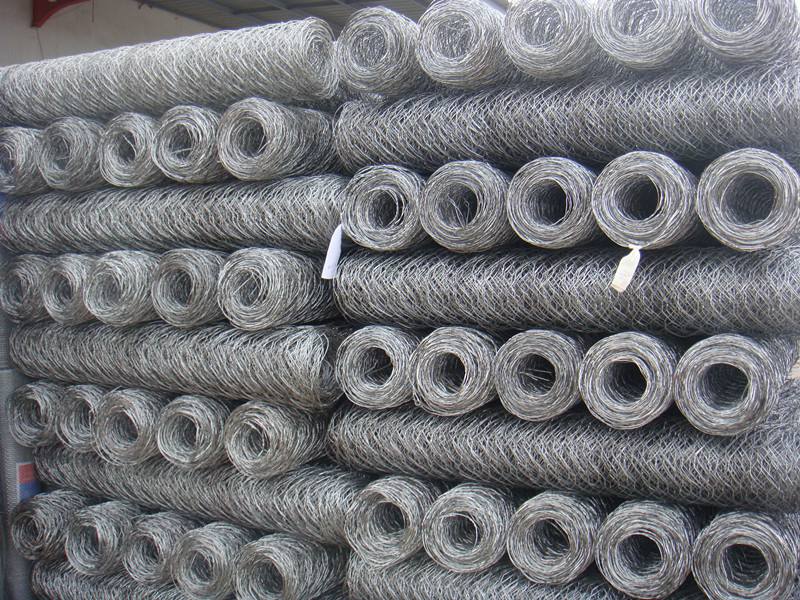

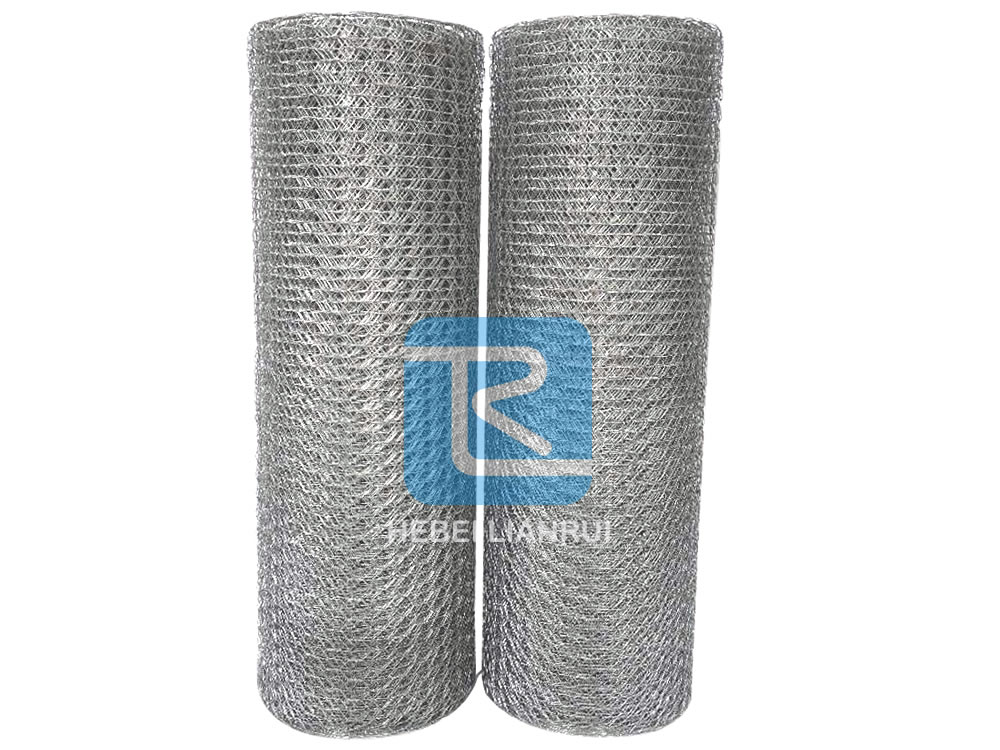

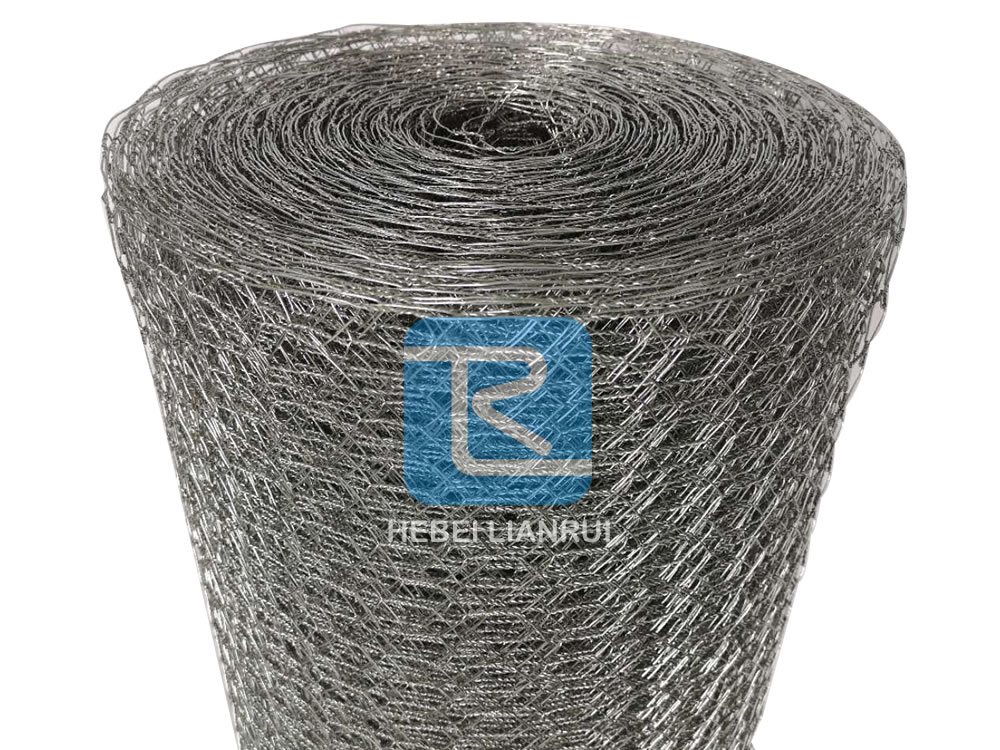

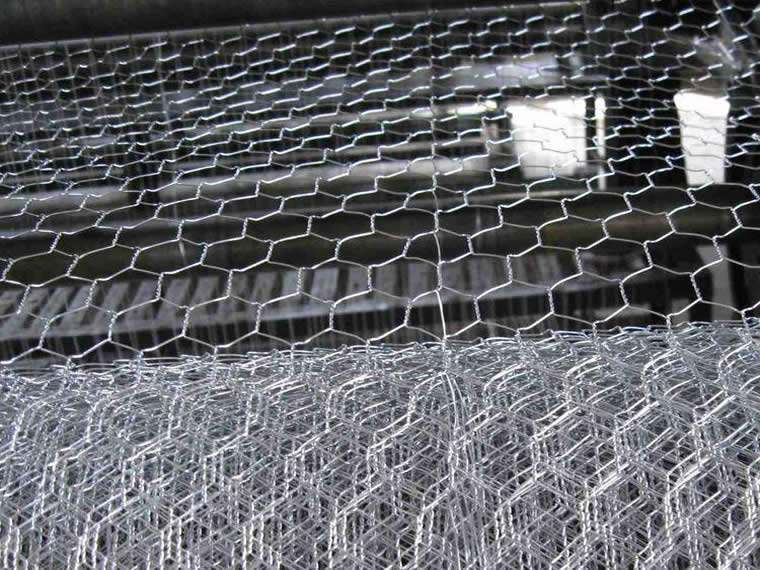

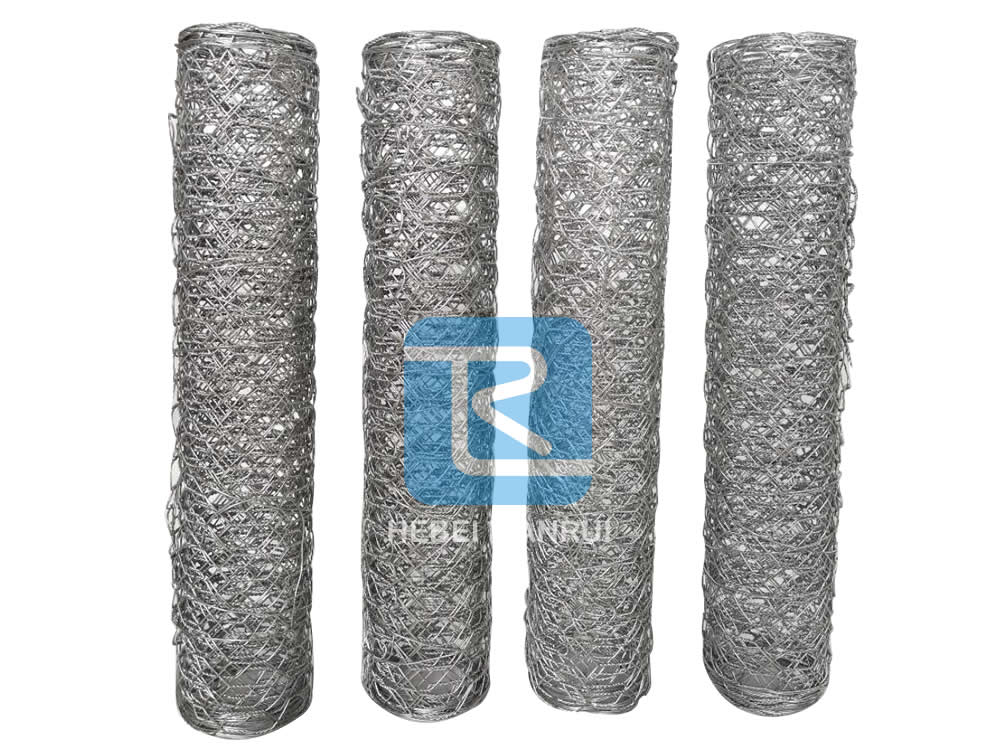

Galvanized Hexagonal Wire Netting

Materials: Quality mild steel wire
Process: Galvanized after weaving or galvanized before weaving
Feature: Smooth surface, good corrosion resistance


Assortments:

* Hot dipped galvanized after weaving.
* Hot dipped galvanized before weaving.
* Electro galvanized after weaving.
* Electro galvanized before weaving.
* Stainless steel.

Weave type:

* Normal Twist
* Reverse Twist

Features:

* Woven by high quality iron wire.
* Reinforcement wire available.
* Adaptable for all fencing needs.
* Smooth surface.
* Good corrosion resistance.
* Extreme weather and humidity resistant.
* Long life.
* Easy to install.

Applications:

* Garden and flower fencing.
* Decorative fencing.
* Plant support and trellis.
* Poultry and small animal enclosures.
* Insulation Retainers.
* Storage bins.
* Stone wrapping.
* Concrete reinforcement.

Galvanized Hexagonal Wire Netting-Normal Twist
Mesh Opening Wire Thickness Width
inch mm bwg mm inch m
3/8 10 27; 26; 25; 24; 23 0.40-0.63 12-48 0.3-1.2
1/2 13 27; 26; 25; 24; 23; 22; 21; 20 0.40-0.88 12-80 0.3-2.0
5/8 16 27; 26; 25; 24; 23; 22; 21; 20 0.40-0.88 12-48 0.3-1.2
3/4 19 27; 26; 25; 24; 23; 22; 21; 20 0.40-0.88 12-80 0.3-2.0
1 25 27; 26; 25; 24; 23; 22; 21; 20 0.40-0.88 12-80 0.3-2.0
1-1/4 30 24; 23; 22; 21; 20; 19; 18 0.56-1.25 12-48 0.3-1.2
1-1/2 40 23; 22; 21; 20; 19; 18 0.63-1.25 12-80 0.3-2.0
2 50 23; 22; 21; 20; 19; 18; 17 0.63-1.47 12-80 0.3-2.0
3 75 23; 22; 21; 20; 19; 18; 17; 16; 15 0.63-1.83 12-80 0.3-2.0
4 100 16; 15; 14; 13; 12 1.65-2.77 20-160 0.5-4.0
Galvanized Hexagonal Wire Netting-Reverse Twist
Mesh Opening Wire Thickness Width
inch mm bwg mm inch m
1 25 25; 24; 23; 22; 21; 20; 19; 18 0.51-1.25 12-80 0.3-2.0
1-1/4 30 25; 24; 23; 22; 21; 20; 19; 18 0.51-1.25 12-80 0.3-2.0
1-1/2 40 25; 24; 23; 22; 21; 20; 19; 18 0.51-1.25 12-80 0.3-2.0
2 50 25; 24; 23; 22; 21; 20; 19; 18; 17 0.51-1.47 12-80 0.3-2.0
3 75 23; 22; 21; 20; 19; 18; 17 0.63-1.47 12-80 0.3-2.0
